Product Description:

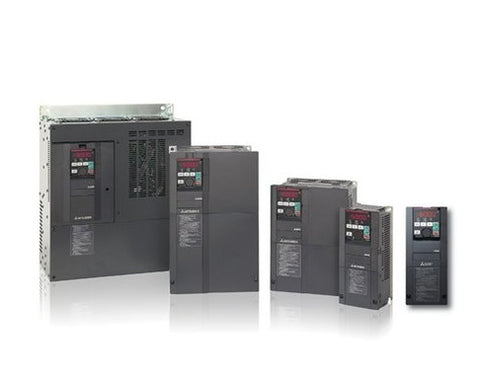

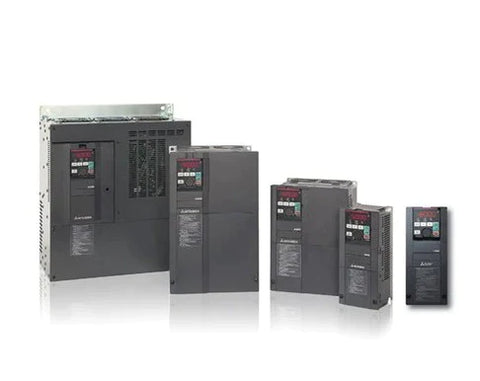

The FR-F800 is a pump and fan control VFD optimized for maximum energy saving. Equally at home in an industrial environment or as part of an integrated HVAC system, FR-F800 can also be used as a cost-effective drive for controlling other types of lighter duty constant torque loads.Related Links
-
Best Price Guarantee
100,000+ ProductsQuality Checked - Free ShippingOn Qualifying Orders
- OEM/ VolumeDiscounts Available
- Product WarrantyQuality Guaranteed
- Have a question?Give us a call
| Product Number | Product Details | Price | Stock Status |
Quantity
Add To Cart
|
|---|---|---|---|---|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 7.5hp(SLD) 7.5hp(LD), Rated Current: 12.6 A(SLD) 11.5A(LD), Frame Size: C, Weight: 9(lbs), Natural Cooling, UL TYPE 1 Protective rating. Non-ethernet version
|
$1,776.05 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 1hp(SLD) 1hp(LD), Rated Current: 2.3 A(SLD) 2.1 A(LD), Frame Size: C, Weight: 8(lbs), Natural Cooling, UL TYPE 1 Protective rating. |
$1,092.82 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 2hp(SLD) 2hp(LD), Rated Current: 3.8 A(SLD) 3 A(LD), Frame Size: C, Weight: 8(lbs), Natural Cooling, UL TYPE 1 Protective rating. |
$1,226.26 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 3hp(SLD) 3hp(LD), Rated Current: 5.2 A(SLD) 4.8A(LD), Frame Size: C, Weight: 8(lbs), Natural Cooling, UL TYPE 1 Protective rating. |
$1,290.31 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 5hp(SLD) 5hp(LD), Rated Current: 8.3 A(SLD) 7.6A(LD), Frame Size: C, Weight: 9(lbs), Natural Cooling, UL TYPE 1 Protective rating. |
$1,418.42 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 7.5hp(SLD) 7.5hp(LD), Rated Current: 12.6 A(SLD) 11.5A(LD), Frame Size: C, Weight: 9(lbs), Natural Cooling, UL TYPE 1 Protective rating. |
$1,776.05 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 10hp(SLD) 10hp(LD), Rated Current: 17 A(SLD) 16A(LD), Frame Size: D, Weight: 17(lbs), Forced Air Cooling, UL TYPE 1 Protective rating. |
$1,941.52 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 20hp(SLD) 20hp(LD), Rated Current: 31 A(SLD) 29A(LD), Frame Size: E, Weight: 17(lbs), Forced Air Cooling, UL TYPE 1 Protective rating. |
$2,437.98 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 15hp(SLD) 15hp(LD), Rated Current: 25 A(SLD) 23A(LD), Frame Size: D, Weight: 17(lbs), Forced Air Cooling, UL TYPE 1 Protective rating. |
$1,808.12 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 25hp(SLD) 25hp(LD), Rated Current: 38 A(SLD) 35A(LD), Frame Size: E, Weight: 20(lbs), Forced Air Cooling, UL TYPE 1 Protective rating. |
$3,249.27 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 30hp(SLD) 30hp(LD), Rated Current: 47 A(SLD) 47A(LD), Frame Size: F, Weight: 37(lbs), Forced Air Cooling, UL TYPE 1 Protective rating. |
$3,841.76 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 40hp(SLD) 40hp(LD), Rated Current: 62 A(SLD) 57A(LD), Frame Size: F, Weight: 37(lbs), Forced Air Cooling, UL TYPE 1 Protective rating. |
$4,733.16 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 60hp(SLD) 50hp(LD), Rated Current: 77A(SLD) 70A(LD), Frame Size: G, Weight: 51(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$5,523.15 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 60hp(SLD) 60hp(LD), Rated Current: 93A(SLD) 85A(LD), Frame Size: H, Weight: 90(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$7,402.04 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 150hp(SLD) 100hp(LD), Rated Current: 180A(SLD) 144A(LD), Frame Size: H, Weight: 95(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$9,798.69 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 75hp(SLD) 75hp(LD), Rated Current: 116A(SLD) 106A(LD), Frame Size: H, Weight: 90(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$8,592.35 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 150hp(SLD) 150hp(LD), Rated Current: 216A(SLD) 180A(LD), Frame Size: J, Weight: 114(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$11,432.04 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 200hp(SLD) 150hp(LD), Rated Current: 260A(SLD) 216A(LD), Frame Size: J, Weight: 121(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$12,958.63 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 250hp(SLD) 200hp(LD), Rated Current: 325A(SLD) 260A(LD), Frame Size: L, Weight: 156(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$21,392.28 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 300hp(SLD) 250hp(LD), Rated Current: 361A(SLD) 325A(LD), Frame Size: L, Weight: 172(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$14,997.65 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 350hp(SLD) 300hp(LD), Rated Current: 432A(SLD) 361A(LD), Frame Size: M, Weight: 257(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$15,515.42 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 400hp(SLD) 350hp(LD), Rated Current: 481A(SLD) 432A(LD), Frame Size: M, Weight: 257(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$17,965.44 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 500hp(SLD) 450hp(LD), Rated Current: 610A(SLD) 547A(LD), Frame Size: N, Weight: 365(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$21,186.50 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 450hp(SLD) 400hp(LD), Rated Current: 547A(SLD) 481A(LD), Frame Size: N, Weight: 365(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$18,851.50 |
In Stock
|
|
|
Standard Model Inverter, 480V Class, Applicable motor capacity: 550hp(SLD) 500hp(LD), Rated Current: 683A(SLD) 610A(LD), Frame Size: N, Weight: 365(lbs), Forced Air Cooling, IP00 Type Protective rating. |
$23,276.50 |
In Stock
|
